SmallHD Indie 7 Komodo Kit / DSMC3

Name: SmallHD Indie 7 Komodo Kit / DSMC3
Brand: SmallHD
SKU: VRMSHD149
Price: 3296.0 AUD
Availability: OutOfStock

SKU VRMSHD149

Sold out

$3,460.00

$3,460.00 - $3,460.00

$3,460.00

$3,296.00

$3,296.00 - $3,296.00

$3,296.00

7" 1920 x 1200 Touchscreen Display
RED RCP2 Camera Control Upgrade
Micro-USB to 5-Pin Adapter & Cable
Microfiber Cleaning Cloth
L-Series Battery Plate
1000 cd/m², 10-Bit IPS LCD Panel

View more product information

features

SmallHD INDIE 7 Touchscreen On-Camera Monitor

Features

Daylight-viewable, 7" touchscreen on-camera monitor with 1000 cd/m² brightness
Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
HDMI and 3G-SDI inputs and outputs; supports video input up to UHD 4K30 via HDMI

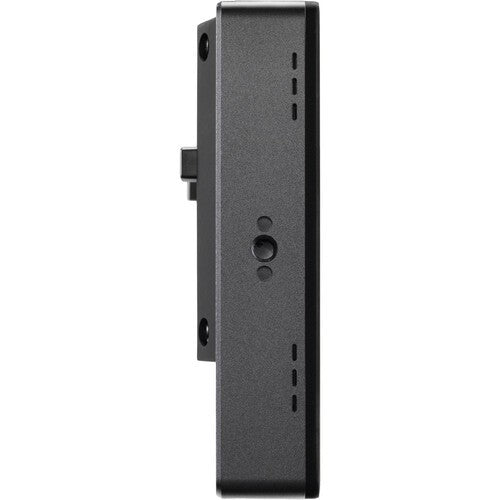

Four 1/4"-20 mounting threads on left, right, bottom, and back of the monitor
SmallHD PageOS 4 has all the features of OS3 to organize and save customized function and settings pages as well as a settings dashboard, page tabs, false color overlays, improved function buttons, pixel zoom, focus assist, peaking, and more
Power using a barrel input or with the included L-series battery plate, or use a separately available Gold mount or V-mount plate
Durable aluminum chassis

Display Tools

Pixel zoom: 2x and 4x with pinch-zoom
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to 8 channels

specifications

SmallHD INDIE 7 Touchscreen On-Camera Monitor Specs

Display

Panel Type	IPS-Type LCD
Display Size	7.02" / 17.8 cm
Screen Area	5.95 x 3.72" / 15.11 x 9.45 cm
Resolution	1920 x 1200
Aspect Ratio	16:9
Viewing Angle	Horizontal: 160°
Touchscreen	Yes
Maximum Brightness	1000 cd/m²
Contrast Ratio	1000:1
Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
HDR Compatibility	None
Pixels Per Inch (ppi)	323 ppi
Color Gamut	100% Rec. 709
Real-Time LUT Monitoring	SDR, HDR
Image Controls	Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra
Video I/O	1 x HDMI Input 1 x HDMI Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Output
Embedded Audio	HDMI SDI
Audio I/O	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	None
Power I/O	1 x Barrel (10 VDC) Input
Other I/O	1 x Micro-USB 2.0 Input
Wi-Fi	None

Format Support

Video Format

HDMI (10-Bit 4:4:4 RGB, YCC)
UHD 4K: 30/29.97/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 200/100/50
480p: 240/239.76/120/119.88/100/60/59.94
480i: 240/239.76/120/119.88/100/60/59.94
576i: 200/100/50
SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50/25
480p: 60
576i: 50
480i: 59.94

Video Signal Conversion

HDMI to SDI

SDI to HDMI

Power

DC Input Power	10 to 34 VDC
Battery Type	1 x L-Series (Interchangeable Mount)
Power Consumption	17.3 W

Mounting

4 x 1/4"-20 Female

Environmental

Certifications	CE, FCC, IC, RoHS *as per Manufacturer
Operating Temperature	30 to 100°F / -1 to 37°C
Storage Temperature	0 to 120°F / -17 to 48°C

General

Material of Construction	Aluminum
Dimensions	7.09 x 4.67 x 1.32" / 18.01 x 11.86 x 3.35 cm
Weight	26 oz / 737 g

SmallHD Micro-USB to 5-Pin LEMO Adapter Specs

Connector 1	Micro-USB, Male
Connector 2	5-Pin LEMO, Female
Power	5 VDC
Mounting	1 x 1/4"-20 Thumbscrew

description

Use the lightweight Indie 7 RED RCP2 Monitor Kit from SmallHD to provide professional monitoring for your KOMODO or RED DSMC3 camera with a sharp 7" display suitable for indoor or outdoor use. The kit includes the Indie 7 monitor, an L-series battery plate, a micro-USB to 5-pin control cable, a cable adapter, a microfiber cleaning cloth, and the RED KOMODO/DSMC3 RCP2 camera control software upgrade.

The Cine 7 monitor supports up to UHD 4K30 HDMI input/output as well as up to 1080p60 via the SDI input/output. The RED control software loads onto the monitor and allows you to control RED camera functions via the RCP2 protocol such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen. The control cable and micro-USB-to-LEMO adapter allow the monitor to connect to the camera.

SmallHD INDIE 7 Touchscreen On-Camera Monitor

The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.

The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.

Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.

SmallHD Microfiber Cleaning Cloth

Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.

SmallHD Micro-USB to 5-Pin LEMO Adapter

Since SmallHD monitors can now display lens focus information with the latest OS3 upgrade, this Micro-USB to 5-Pin LEMO Adapter helps attach a Teradek RT lens controller to your monitor to map and display that information along with your camera's image.

The adapter features a micro-USB male connector that plugs directly into your monitor, and the female 5-pin LEMO adapter on the other end connects a separately available cable from a Teradek CTRL.1 or CTRL.3 lens controller. The port can also power the controller using 5V pass-through power from the micro-USB port. The adapter mounts directly onto your monitor using a 1/4"-20 thumbscrew, or it can mount onto a monitor cage.

Compatibility

SmallHD monitors running OS3
Teradek RT CTRL.1 and CTRL.3 lens controllers

contents

SmallHD INDIE 7 Monitor
SmallHD Microfiber Cleaning Cloth
SmallHD Micro-USB to 5-Pin LEMO Adapter
RED RCP2 Camera Control Software Upgrade
9-Pin EXT to 5-Pin USB Camera Control Cable
