SmallHD Cine 24-inch 4K High-Bright Production Monitor

Name: SmallHD Cine 24-inch 4K High-Bright Production Monitor
Brand: SmallHD
SKU: VRMSHD160
Price: 9766.0 AUD
Availability: InStock

SKU VRMSHD160

Save 23%

$12,695.00

$12,695.00 - $12,695.00

$12,695.00

$9,766.00

$9,766.00 - $9,766.00

$9,766.00

24" Display, UHD 4K Resolution
1000:1 Contrast, 10-Bit Color
1350 cd/m², SmallHD OS4.1
12G-SDI and HDMI 2.0 Inputs and Outputs
3D LUT Support, SD Card Slot
RJ45 Ethernet and GPI, XLR Power Input
USB Type-C Power Outputs, Redesigned UI
Waveform, False Color, Focus Assist
Peaking, Pixel Zoom, Pages, Page Tabs

View more product information

features

Key Features

24" UHD 4K monitor
1000:1 contrast ratio
1350 cd/m² brightness
Four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs
One HDMI 2.0 input and one HDMI 2.0 output
SD card slot for 3D LUTs
One RJ45 Ethernet port
One RJ45 GPI port
100 x 100mm VESA mounting on the back
Thirty-six 1/4"-20 mounting threads on top and sides
Smartrail mounting options
1/4"-20 and 3/8"-16 cheese-style mounting sticks included

SmallHD OS4.1

Internal calibration wizard
Color pipe color-space formatting
Settings dashboard for easy access to common settings
Preconfigured pages
Page tabs
Customizable false color overlays
Customizable 4K waveform with region-of-interest highlighting
Improved function buttons
Pixel zoom, focus assist, peaking
Total UI overhaul

Power Options

One 3-pin XLR 12 to 24V, 12A input
Two 2-pin LEMO 12V, 2A outputs
Two USB Type-A 5V, 2.4A outputs
Two USB Type-C 5V, 1.5A outputs
Separately available V-mount or Gold mount battery plates
XLR and battery options are hot-swappable

specifications

SmallHD Cine 24 4K Monitor Specs

Display

Panel Type	LCD
Display Size	24.00" / 61.0 cm
Resolution	3840 x 2160
Aspect Ratio	16:9
Touchscreen	No
Maximum Brightness	1350 cd/m²
Dynamic Contrast Ratio	1000:1
Bit Depth / Color Support	8-Bit+FRC (1.07 Billion Colors)
HDR Compatibility	Yes
Pixels Per Inch (ppi)	93 ppi
Color Gamut	115% DCI-P3
Image Controls	False Color, Focus Assist, Focus Peaking, Pixel Zoom, Waveform
Video I/O	1 x HDMI 2.0 Input 4 x BNC (12G-SDI) Input 1 x HDMI 2.0 Output 4 x BNC (12G-SDI) Output
Embedded Audio	HDMI SDI
Audio I/O	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	None
Power I/O	1 x XLR 3-Pin (12 A / 34 VDC) Input 2 x LEMO 2-Pin (2 A / 12 VDC) Output 2 x USB-A (2.4 A / 5 VDC) Output 1 x USB-C (1.5 A / 5 VDC) Output
Other I/O	1 x RJ45 (GPI) Input/Output 1 x RJ45 (LAN) Input/Output
Media/Memory Card Slot	None
Wi-Fi	None

Format Support

Video Format

HDMI
DCI 4K: 60
SDI
UHD 4K: 60

Power

DC Input Power	12 to 34 VDC at 18 A
Battery Type	2 x V-Mount, Gold Mount (Interchangeable Mount)
Power Consumption	128 W (Typical) 209 W (Maximum)

Mounting

Mounting-Hole Pattern	100 x 100 mm
Mounting	36 x 1/4"-20 Female

General

Dimensions	23.25 x 17.5 x 2" / 59.05 x 44.5 x 5.1 cm
Weight	16.5 lb / 7.48 kg

description

Add a professional UHD 4K monitor to your studio with the Cine 24" 4K High Bright Pro Monitor from SmallHD. Featuring the updated SmallHD OS4.1, the monitor provides a crisp image with 10-bit DCI-P3 color intelligence, 1350 cd/m² brightness, and a 1000:1 contrast ratio.

The monitor features four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs, as well as one HDMI 2.0 input and one HDMI 2.0 output. All functionality of the monitor is accessed via the innovative Page Builder in OS4.1 that features a fully redesigned UI, preconfigured pages, and page tabs. Other monitoring features include a calibration wizard, false color overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons. Additional functions with updates of OS4.1 will include dual and quad view and 4K waveforms and scopes with regions of interest.

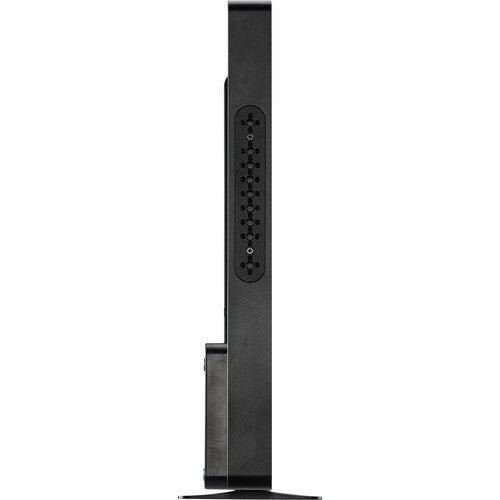

The monitor can be mounted using the 100 x 100mm VESA pattern on the back or by thirty-six 1/4"-20 threads around the top and sides of the monitor. You can power the monitor using a 3-pin XLR input or by a separately available dual V-mount or Gold mount battery plate, and they are hot-swappable. You can also power peripherals from the monitor using the two 2-pin LEMO-type outputs, the two USB Type-A outputs, or the one USB Type-C output.

Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration. There is a 3.5mm headphone output to monitor the embedded audio.

The monitor includes numerous accessories such as an acrylic screen protector, a 3' long HDMI cable, two 1/4"-20 cheese-style accessory mounting sticks, two 1/4"-20 and 3/8"-16 cheese-style accessory mounting sticks, monitor feet, a monitor handle, a 3-pin XLR power supply, an 8GB SD card, and a microfiber cleaning cloth.

contents

SmallHD Cine 24" 4K High Bright Pro Monitor
Acrylic Screen Protector
HDMI Cable (3')
2 x Cheese Stick Mount (1/4"-20)
2 x Combo Cheese Stick Mount (1/4"-20 & 3/8"-16)
Monitor Feet
Monitor Handle
3-Pin XLR Power Supply
8GB SD Card
Microfiber Cleaning Cloth
