SmallHD 703 UltraBright V-Mount Directors Kit - New Media

Availability:

Out of stock

SmallHD 703 UltraBright V-Mount Directors Kit

Name: SmallHD 703 UltraBright V-Mount Directors Kit
Brand: SmallHD
SKU: VRMSHD150
Price: 5520.0 AUD
Availability: OutOfStock

SKU VRMSHD150

Sold out

$5,795.00

$5,795.00 - $5,795.00

$5,795.00

$5,520.00

$5,520.00 - $5,520.00

$5,520.00

703U UltraBright Monitor
703 Cage and Hood
V-Mount Battery Plate
Monitor Accessory Handles and Neck Strap
Clear and Ultra-Matte Screen Protectors
BNC Cables
D-Tap to 2-Pin LEMO Power Cable
Cleaning Cloth

View more product information

features

specifications

SmallHD 703 UltraBright On-Camera Monitor Specs

Display

Panel Type	TFT LCD
Display Size	7.0" / 17.8 cm
Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178° (89/89) Vertical: 178° (89/89)
Maximum Brightness	2200 cd/m²
Contrast Ratio	1200:1
Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi)	323 ppi
Color Gamut	70% NTSC
Image Controls	Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform
Video I/O	1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x BNC (3G-SDI) Input 1 x HDMI Input
Embedded Audio	HDMI SDI
Audio I/O	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	None
Power I/O	1 x LEMO 2-Pin Input 1 x LEMO 2-Pin Output

Format Support

Video Format

SDI (10-Bit 4:2:2)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
480i
576i
HDMI (8/10/12-Bit)
1080p: 23.98/24/25/30/50/59.94/60
1080PsF: 23.98/24/25/30
1080i: 50/59.94/60
720p: 23.98/24/25/30/50/59.94/60/100/119.88/120
576p: 50/100
480p: 59.94/60/119.88/120
480i: 59.94/60/119.88/120/239.76/240
576i: 50/100/200

Power

DC Input Power	6 to 34 VDC
Battery Type	None
Power Consumption	13 W

Mounting

2 x 1/4"-20 Female

Environmental

Certifications	CE, FCC, IC, RoHS *as per Manufacturer
Operating Temperature	0 to 100°F / -18 to 38°C
Storage Temperature	-4 to 120°F / -20 to 48.9°C

General

Dimensions	4.9 x 8.4 x 1.1" / 12.4 x 21.3 x 2.9 cm
Weight	1.7 lb / 748 g

SmallHD Battery Plate for 503/703 UltraBright On-Camera Monitor (V-Mount) Specs

Dimensions	3.1 x 0.8 x 5" / 7.87 x 2.03 x 12.7 cm
Weight	7.0 oz / 198.4 g

SmallHD Monitor Handles and Neck Strap Specs

Environmental

Certifications

CE
*as per Manufacturer

SmallHD Thin BNC Cable (12") Specs

Cable Length	12" / 30.5 cm
Weight	0.1 lb / 0 kg

SmallHD Thin BNC Cable (48") Specs

Cable Length	4' / 1.2 m
Weight	0.1 lb / 0.1 kg

SmallHD D-Tap to 2-Pin Power Cable (36") Specs

Environmental

Connector 1	1 x LEMO 2-Pin Male
Connector 2	1 x D-Tap Female
LED Indicators	No
Cable Length	36" / 91.4 cm

SmallHD Clear Screen Protector for 703 Bolt and 703 UltraBright Monitors Specs

Dimensions

6.56 x 4.69" / 16.67 x 11.91 cm

SmallHD Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright Monitors Specs

description

This SmallHD 703 UltraBright Directors Kit with V-mount battery plate provides you with a 7", 2200 cd/m² brightness monitor, a cage and sun hood, accessory handles and neck strap, as well as screen protectors, BNC cable, D-Tap to 2-pin LEMO power cable, and a cleaning cloth. This kit makes it simple for the director to see what the camera sees, indoors or out. The included handles allow the monitor to be easily gripped, positioned, or held, while the neck strap helps prevent the monitor from crashing to the ground when held by an easily distracted operator.

The UltraBright monitor's display is easily visible outdoors, even on bright days, and the included antireflection screen protector helps with visibility on gray, overcast, glare-riddled days. If you don't need the anti-glare properties, you can use the included clear screen protector instead. Either protects your screen from day-to-day wear, but the screen protector will not protect your monitor or screen from impact damage.

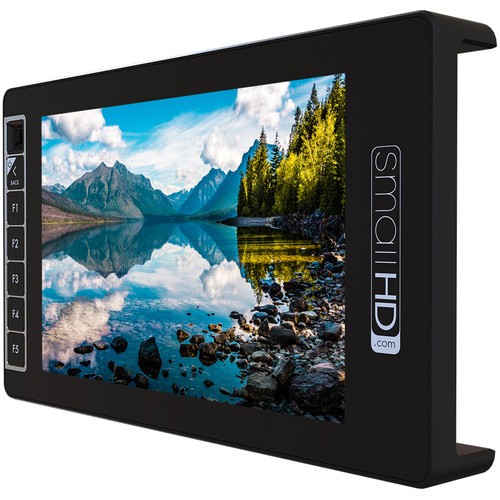

SmallHD 703 UltraBright On-Camera Monitor

Though monitoring HD video signals outdoors can be difficult, the SmallHD 703 UltraBright On-Camera Monitor, with its 2200 cd/m² bright backlight, overcomes this environmental difficulty. The 7" 1920 x 1080 LCD provides a sharp image, ideal for focus pulling and image analysis on set and in the field. Another advantage of the high-brightness panel is the monitor's ability to preview HDR content. HDR preview extends the display's dynamic range to portray a greater range of brightness in the image.

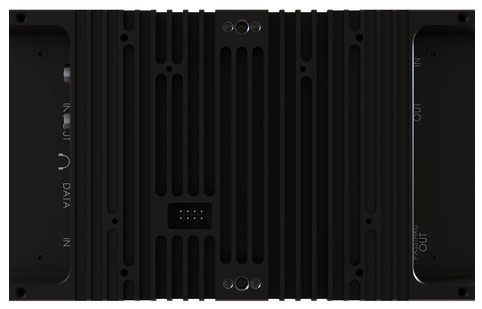

A unibody aluminum exterior keeps the monitor durable yet lightweight, while also acting as a heatsink for the internal electronics. The LCD panel itself is protected by a layer of optically-bonded Gorilla Glass, notable for its transparency and toughness. The optical bonding process ensures that blacks are not washed out and reduces the harshness of reflections.

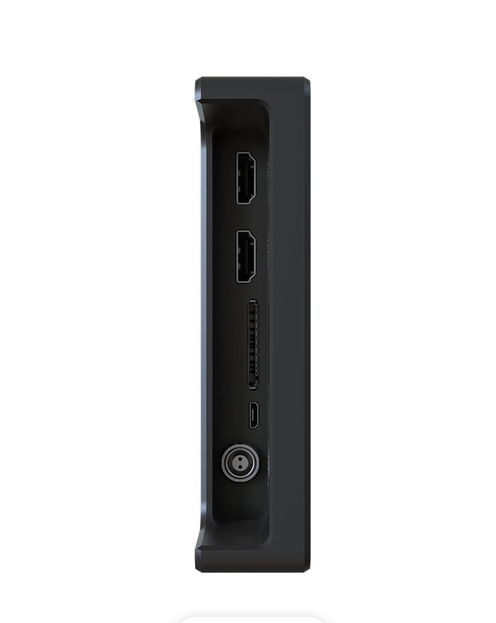

On the sides of the display are the SDI and HDMI I/O. Having dual SDI ports allows for A/B viewing of two different SDI signals, or the secondary port can be assigned as an output for sending an SDI signal downstream to another monitor, switcher, or wireless accessory. All the functionality of the monitor is available via the PageBuilder OS, which provides advanced functionality with a simple and efficient graphical user interface.

PageBuilder OS

PageBuilder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the 703 UltraBright at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, LUTs, and focusing aids on different "pages". These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page.

ColorFlow 3D LUT Processing

To keep your images consistent from production through to post-production, ColorFlow allows you to import 3D LUTs and display the treated image side-by-side with the untreated image to correctly gauge exposure while visualizing what is being recorded by the camera. Side-by-side preview can also be used with the HDR preview function. Separate LUT-treated images can be sent downstream over SDI and HDMI so you can have the 703 UltraBright display a log image or LUT-treated image, while the director or client monitors connected to the outputs can receive images treated with a different LUT. An image capture function saves a still frame from the incoming video stream onto an SD card, and records the applied 3D LUT for post-production reference.

On-Set Problem Solving

PageBuilder OS has a dedicated "Output Preview" page which allows you to apply LUTs and other image adjustments specific to the output signal from the monitor. Whether you have your camera connected to the HDMI or SDI input on the 703 UltraBright, you are not limited by that protocol; the 703 UltraBright cross-converts to ensure compatibility with downstream hardware.

HD Scopes

Fill the screen with up to three simultaneous scopes, including waveform, vectorscope, and histogram, while still being able to observe the camera feed.

Exposure Tools

Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.

Customizable Focus Assist and Peaking Tools

As recording resolutions increase, so does the importance of focusing precision. With Focus Assist, you can highlight the areas that are in focus with a bright color. These highlights are easily visible on the fly for quick focus confirmation. Focus Peaking increases the sharpness of the image for a subtler focus confirmation without the need for bright outlines. The color and intensity of these tools are adjustable to fit your preference.

Versatile Frame Guides

Select standard markers and

safety areas that can be overlaid on the display as lines or matte overlays, with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9, and Custom (user selectable).

Power Options

Separately available DV, V-Mount, or Gold Mount battery plates can be attached to the rear of the display. A mounted battery can power the monitor, as well as attached accessories, through the 12V LEMO pass-through connection.

SmallHD Battery Plate for 503/703 UltraBright On-Camera Monitor (V-Mount)

The V-mount SmallHD Battery Plate for 503/703 UltraBright On-Camera Monitor is designed to work with and power either the SmallHD 503U or 703U on-camera monitor. The battery plate features a solid locking system that prevents your professional battery from accidentally disconnecting.

SmallHD Monitor Handles and Neck Strap

These Monitor Handles and Neck Strap from SmallHD give you a comfortable way of holding a compatible monitor. Easy to install, the lightweight black rubber handles attach securely to your monitor's side threaded holes using the included screws. The padded neoprene neck strap is adjustable and fastens onto the handles.

Anti-slip rubber handles
Woven nylon strap with neoprene padding
Anti-spin handle connection
Easy to install and hold

SmallHD Thin BNC Cable (12"/30cm)

At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI.

SmallHD Thin BNC Cable (48"/121cm)

At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI.

SmallHD D-Tap to 2-Pin Power Cable (36"/91cm)

Output power from your Cine 13 monitor to power or charge accessories with this D-Tap to 2-Pin Power Cable from SmallHD. The cable features a 2-pin LEMO-type connector on one end and a D-Tap connector on the other. The cable can plug into the output of the Cine 13 monitor to output power to other accessories.

SmallHD Clear Screen Protector for 703 Bolt and 703 UltraBright Monitors

This SmallHD Clear Screen Protector for 703 Bolt and 703 UltraBright Monitors is flexible and features a clear screen with no anti-reflection properties. It protects your screen from incidental contact, scratches, and wear. However, it does not provide impact protection to your screen.

SmallHD Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright Monitors

This SmallHD Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright Monitors is flexible and features anti-reflection properties that minimize glare. It protects your screen from incidental contact, scratches, and wear. However, it does not provide impact protection to your screen.

SmallHD Microfiber Cleaning Cloth

Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.

contents

What's Included in the Bundle:

SmallHD 703 UltraBright Monitor
Neck Strap and Lightweight Monitor handles
V-Mount Battery Bracket
Sunhood Cage Combo for 703
Clear Screen Protector for 703
Ultra Matte Screen Protector for 703
Lemo to Bare Wire Cable
30cm Thin SDI Cable
61cm Thin SDI Cable
120cm Thin SDI Cable
SmallHD Cleaning Cloth
