PTZOptics PT20X-ZCAM • Box Camera • 20x Optical • HD-SDI • 1080p (White)

Name: PTZOptics PT20X-ZCAM • Box Camera • 20x Optical • HD-SDI • 1080p (White)
Brand: PTZOptics
SKU: CVSPTZ117
Price: 1357.0 AUD
Availability: InStock

SKU CVSPTZ117

Save 7%

$1,453.57

$1,453.57 - $1,453.57

$1,453.57

$1,357.00

$1,357.00 - $1,357.00

$1,357.00

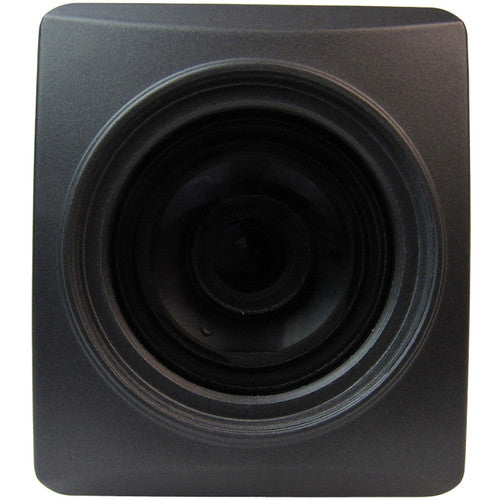

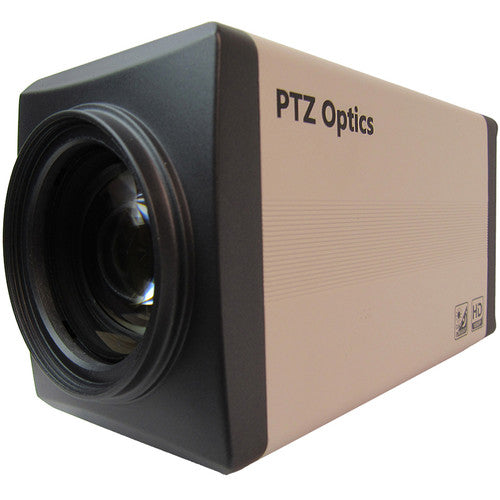

The PT20X-ZCAM 2.07MP Full HD 3G-SDI Box Camerafrom PTZ Optics features a 20x optical zoom for capturing HD video, even at a distance.

View more product information

features

Panasonic 1/2.7" HD CMOS sensor
3G-SDI video output
Wide dynamic range (WDR)
High performance in low-illumination situations
H.264, H.265, and MJPEG IP streaming output (dual stream)
AAC audio encoding over IP
Up to Full HD, 1920 x 1080p60 resolution via SDI
2D and 3D noise reduction with low-noise CMOS sensor
Menu controls on back of camera
RS-485 and IP remote camera control
60.7° field of view
Standard 1/4"-20 female thread for camera mounting (bottom)
Power over Ethernet (PoE)

specifications

Camera & Lens
Sensor	1/2.7" 2.07 MP CMOS sensor
Frame Rate	1080p 60/50/30/25 1080i 60/50/30/25 720p 60/50/30/25
Focal Length	4.42 to 88.5mm
Aperture	f/1.8 to f/2.8
Zoom	20x optical
Field of View	60.7°
Minimum Illumination	0.05 lux (f/1.8, AGC ON)
Shutter Speed	1/25 to 1/10000 sec
Signal to Noise Ratio (SNR)	≥55 dB
Mirror	Supported
Angle of View	Horizontal: 3.4° (tele) to 60.7° (wide) Vertical: 1.9° (tele) to 34.1° (wide)

Electrical
Power Supply	12 W, 1 A
Input Voltage	12 VDC (10.8 to 13.0 VDC) PoE Class 3 - 802.3af

Connectors
Output Interface	3G-SDI, RJ45
Communication Interface	RS-485 VISCA, Pelco-D, and Pelco-P
Baud Rate	2400/4800/9600 bits
Power Supply	JEITA type power adapter (12 VDC in) PoE 802.3af

Physical
Dimensions (W x D x H)	2.4 x 5.7 x 3.0" / 6.0 x 14.5 x 8.0 cm
Weight	1.4 lb / 0.6 kg

description

[Manual]

The PT20X-ZCAM 2.07MP Full HD 3G-SDI Box Camerafrom PTZ Optics features a 20x optical zoom for capturing HD video, even at a distance. With 3G-SDI and IP streaming support for up to 1920 x 1080p60 resolution, this camera is suitable for broadcasting or videoconferencing applications.

contents

PTZOptics PT20X-ZCAM • Box Camera
Power Adapter
Warranty

manufacturer

PTZOptics
