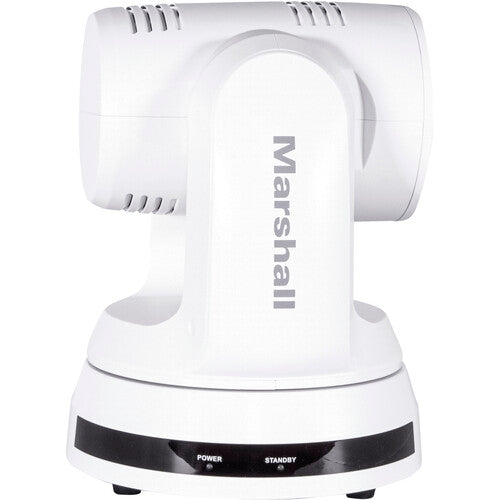

Marshall Electronics UHD60 PTZ Camera • 30x Optical Zoom • NDI|HX, 12G-SDI, HDMI2, USB3 Output • 8.5MP (1/1.8") (6.5~202mm) (White)

Name: Marshall Electronics UHD60 PTZ Camera • 30x Optical Zoom • NDI|HX, 12G-SDI, HDMI2, USB3 Output • 8.5MP (1/1.8") (6.5~202mm) (White)
Brand: Marshall
SKU: CVDMES132
Price: 6289.0 AUD
Availability: InStock

SKU CVDMES132

Save 4%

$6,525.64

$6,525.64 - $6,525.64

$6,525.64

$6,289.00

$6,289.00 - $6,289.00

$6,289.00

SPECIAL PROMO UNTIL 31-01-2021: Order now and get a free Magewell Pro Convert for NDI to HDMI 4K (product Link: VIOMWL114)

Video Resolution up to UHD 4K60
8.5MP 1/1.8" Sony Sensor
6.5 to 202mm Lens, 30x Optical Zoom
12G-SDI, HDMI 2.0, and NDI|HX Outputs

View more product information

features

specifications

Image Sensor

Image Sensor	1-Chip 1/1.8" CMOS Sensor
Sensor Resolution	8.5 MP
Minimum Illumination	1 Lux

Camera

Shutter Speed	1/10000 to 1/1 sec
Flip / Mirror Support	Image Flip

Lens

Optical Zoom Ratio	30x
Focal Length	6.5 to 202mm
Field of View	Horizontal: 65°
Focus Control	Autofocus Manual Focus

Video Output

Output Formats	SDI, HDMI, RJ45: 3840 x 2160p at 25, 29.97, 50, 59.94 fps 1920 x 1080p at 25, 29.97, 50, 59.94 fps 1280 x 720p at 25, 59.94 fps
IP Streaming	H.264, H.265, MP4, RTMP, RTSP: 1080p, 720p, 360p (200.00 Mb/s)

Control

Presets	9 via IR
Movement Range	Pan: 340° Tilt: 120°

Interfaces

Video Output Connectors	1 x HDMI Type A (HDMI 2.0) Female 1 x BNC Female
Audio I/O	1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input/Output
Control Interface	1 x 8-Pin Mini-DIN (RS-232) Input 1 x 8-Pin Mini-DIN (RS-232) Output 1 x 9-Pin Terminal Block (RS-422) Input

Power

PoE Support	PoE 802.3af
Power Connectors	1 x Barrel / Coaxial (12 VDC)
Power Consumption	Power Supply: 12 VDC

General

Tripod Mounting Thread	1 x 1/4"-20 Female
Dimensions	9.1 x 7.4 x 7.4" / 232 x 189 x 188 mm
Weight	6.6 lb / 3 kg (without plate)

description

Capture professional UHD 4K video using remote control operation with the Marshall UHD60 PTZ Camera • 30x Optical Zoom • NDI|HX, 12G-SDI, HDMI2, USB3 Output • 8.5MP (1/1.8") (6.5~202mm). The CV730-NDI comes in a white color and is designed for professional conferencing applications. It captures video at up to UHD 4K60 resolution and is equipped with a 6.5 to 202mm lens with a 65° angle of view and 30x optical zoom.

It features 12G-SDI and HDMI outputs as well as an NDI|HX interface for IP-based integration, control, and management using optional NDI-enabled equipment. Control is also possible via VISCA and Pelco-D signaling protocols using the RS-232 and RS-422 serial ports on the back. The camera is built with a smooth and quiet synchronous pan/tilt/zoom motor. You can power the camera using a power adapter or via PoE (Power-over-Ethernet) with compatible LAN equipment.

contents

Marshall Electronics CV730-NDI UHD 4K Broadcast PTZ Camera with NDI|HX (White)
Remote Control
Power Adapter
Power Cord
RS-422 Connector
Metal Installation Plate A
Metal Installation Plate B
Set of M3 Screws

manufacturer

Marshall
