Lilliput BM280-4KS 28" Carry-On 4K Directors Monitor with SDI/HDR/3D LUTS (V-Mount)

Name: Lilliput BM280-4KS 28" Carry-On 4K Directors Monitor with SDI/HDR/3D LUTS (V-Mount)
Brand: Lilliput
SKU: VRMLIL122
Price: 2365.0 AUD
Availability: InStock

SKU VRMLIL122

Save 5%

$2,479.95

$2,479.95 - $2,479.95

$2,479.95

$2,365.00

$2,365.00 - $2,365.00

$2,365.00

28" 3840 x 2160 10-Bit IPS LCD
Supports NTSC/PAL, HD, and UHD 4K
HDMI, SDI, DVI, and VGA Inputs
178° H/V Viewing Angle
Built-In Monitoring Tools
On-Screen Markers and Focus Peaking
Built-In V-Mount Plate
Hard Case Enclosure
XLR 4-Pin 12-24 VDC Power Input

View more product information

features

Monitoring Tools

Peaking
Blue-only
Image rotation/flip
Overscan
Underscan
Image freeze
Aspect ratio selection
Screen markers
Color temperature adjustment

Assignable Buttons

Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.

Carry-On Enclosure

The included hard case/enclosure improves the robustness of the monitor's metal chassis, useful when venturing outside controlled environments. A rear opening gives easy access to all the monitor's ports and accessory mounts.

Supports Wireless HDMI (WHDI) Technology

With a separately available WHDI receiver, the BM230-4K can accept wireless HDMI signals from up to 50' away for a hassle-free cordless connection. With the WHDI system in place one transmitter can broadcast to multiple receivers, so no splitter is required for multi-monitor viewing.

specifications

Display

Panel Type	IPS-Type LCD
Display Size	28.00" / 71.1 cm
Screen Resolution	3840 x 2160
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178° Vertical: 178°
Touchscreen	No
Maximum Brightness	450 cd/m²
Contrast Ratio	1000:1
Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
Real-Time LUT Monitoring	No
Image Controls	Color Temperature Selection, Focus Peaking, Image Flip, R/G/B/Chroma Only, Screen Markers, Underscan

I/O

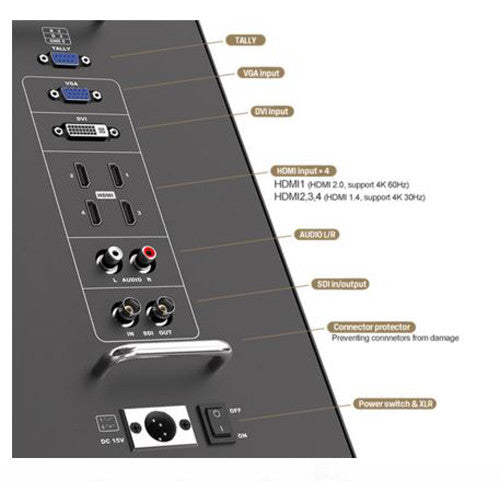

Video	1 x HDMI Type A (HDMI 2.0) Input 3 x HDMI Type A (HDMI 1.4) Input 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Output 1 x DVI-I (Dual-Link DVI) Input 1 x DE-15/DB-15 (VGA) Input
Audio	1 x 2RCA Line Input 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	2
Power	1 x 4-Pin XLR Input
Other I/O	1 x Tally (DE-9/DB-9)
Card Slot	None

Power

DC Input Power	12 to 24 VDC
Battery Type	1 x V-Mount

Mounting

Mounting-Hole Pattern	100 x 100 mm, 75 x 75 mm
Mounting	None

Environmental

Operating Temperature	32 to 140°F / 0 to 60°C
Storage Temperature	-4 to 140°F / -20 to 60°C

General

Dimensions	26.4 x 16.7 x 1.7" / 67.1 x 42.4 x 4.3 cm 30 x 18.7 x 6.8" / 76.2 x 47.5 x 17.3 cm, Including Case
Weight	20.7 lb / 9.39 kg 51.8 lb / 23.50 kg, Including Case

description

Built into a hard case, the Lilliput BM280-4K is a 28" native UHD 4K monitor useful for both studio and field situations. The full capacity of the 3840 x 2160 UHD resolution 10-bit IPS panel can be driven at up to 30 fps by any of the three HDMI 1.4 inputs, or up to 60 fps by the single HDMI 2.0 input. Other inputs available on the back panel for HD and VESA sources include 3G-SDI (with a loop-through output), DVI, and VGA. Video signals input via any of these ports will be properly scaled to fit the entire screen. Analog audio from the RCA inputs or embedded digital audio from video inputs can be heard using the monitor's built-in speakers or the 3.5mm headphone output.

For power, this monitor accepts a wide range of voltages ranging from 12 to 24 VDC. In the studio, the included power supply plugs the BM280-4K into the wall, and the 75/100mm VESA mount can be utilized for mounting on a stand. The included tally connector passes tally information through to the monitor when connected to a switcher. While in the field, the monitor will accept battery power via the built-in V-mount plate. It can be stood up vertically using the rubber feet built into the monitor's hard case, and a sunshade is included for increased visibility outdoors.

contents

Lilliput BM280-4K Carry-On 4K Monitor (V-Mount)
Sunshade
Power Cord
2 x Power Adapter Fixing Belt
Tally Connector
Warranty

manufacturer

Lilliput
