Hollyland MARS 4K-AU Wireless Video Transmission System

Name: Hollyland MARS 4K-AU Wireless Video Transmission System
Brand: Hollyland
SKU: MARS 4K-AU
Price: 1185.0 AUD
Availability: InStock

SKU MARS 4K-AU

Save 5%

$1,249.00

$1,249.00 - $1,249.00

$1,249.00

$1,185.00

$1,185.00 - $1,185.00

$1,185.00

14 Dec. Estimated arrival

11 Dec. Order placed

12-13 Dec. Order dispatches

14 Dec. Delivered!

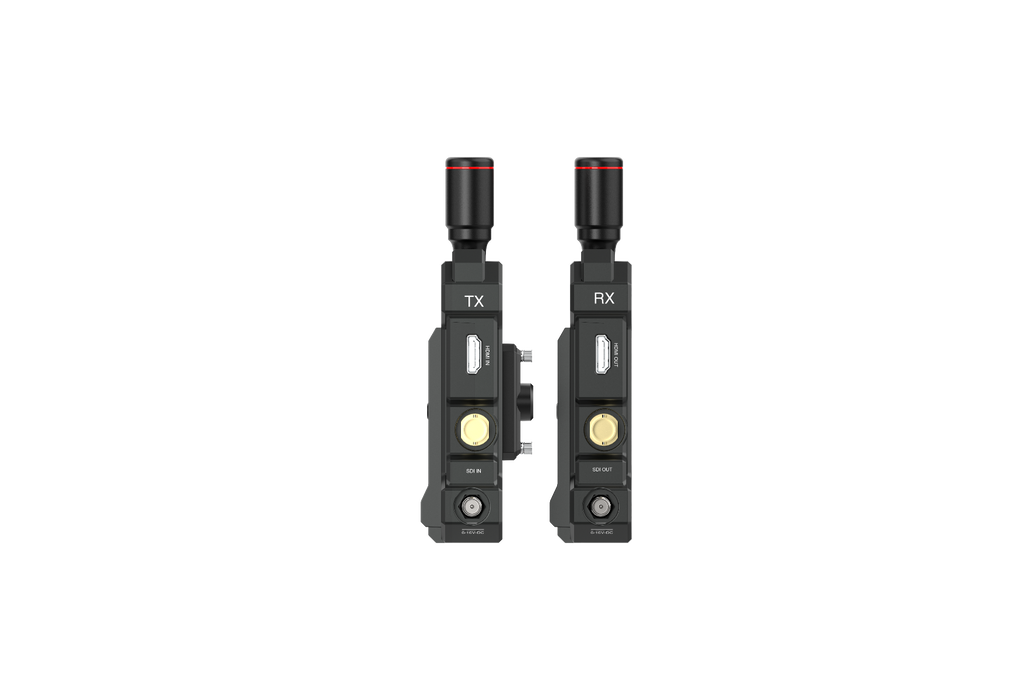

Transmitter and Receiver Set
Transmit up to UHD 4K30 Video up to 450'
SDI & HDMI Inputs & Outputs
L-Series Battery/USB Type-C/DC Power
Smart Channel Scanning, Touchscreen LCD
Low 0.06s Latency, 12 Mb/s Data Rate
DC, L-Series & USB Type-C Power Options
Transmits to up to 4 x Apps as Monitor

View more product information

features

specifications

Hollyland Mars 4K Specs

I/O

Antenna Ports	Transmitter/Receiver: 2 x RP-SMA Female
Video	Transmitter: 1 x HDMI Type A Input Transmitter: 1 x BNC Input Receiver: 1 x HDMI Type A Output Receiver: 1 x HDMI Type A Output
Embedded Audio	HDMI/SDI
Power	Transmitter/Receiver: 1 x Coax Input Transmitter/Receiver: 1 x USB Type-C Input
Encryption	None

Wireless

Wireless Range	450' / 137.2 m (Line-of-Sight)
Channel Bandwidth	20 MHz
Frequency Range	US: 5 GHz
Latency	0.06 sec

Format Support

Video Format	HDMI UHD 4K: 30 1080p: 60/30/24 SDI 1080p: 60/59.94/30/29.97/24/23.98
Timecode Support	Yes

Power

DC Input Power

6 to 16 VDC

Environmental

IP Rating

None

description

MARS 4K

450ft 4K UHD wireless video transmission

The new Hollyland Mars 4K wireless video transmission system is capable of a 450ft (150m) LOS range and ultra-low latency of 0.06s. The Mars 4K is designed to combine high performance and reliable quality at an affordable price.

KEY FEATURES

• 4K UHD
• 450ft (150m) LOS Range
• 0.06s Low Latency
• SDI & HDMI Support
• Broadcast & Production Frame Rate
• Flexible Monitoring Options
• Smart Channel Scan & Selection
• Multiple Power Supply Options

4K UHD Video Transmission

The Mars 4K supports 4K UHD video transmission at 30fps for the discerning videographer looking for high-resolution production capability. The Mars 4K also supports FHD and HD formats at varying frame rates—24p, 30p, and 60p.

450ft (150m) LOS Range and 0.06s Ultra-low Latency

The Mars 4K achieves an incredible LOS range of 450ft (150m) and ultra-low latency of 0.06s. Its upgraded dual-core codec chip is capable of a 12 Mbps data transfer rate.
*The LOS range of 450ft (150m) is based on interference-free laboratory measurements.

HDMI & SDI Dual Interfaces

The Mars 4K supports HDMI and SDI input and output for expanded connectivity and compatibility. The SDI provides expanded frame rate flexibility for both broadcast and production frame rate (decimal-point frame rate) standards and compatibility through production and postproduction.

Flexible Monitoring Options

The Mars 4K transmitter is compatible with up to two receivers or four mobile devices with the app installed. Up to four mobile devices with the app installed allow a maximum of four parties (such as the director, producer, light control personnel, and audio personnel) on the site to monitor the shooting at the same time.

Operational Efficient Design Form Factor

The Mars 4K is featured with superior corrosion and wear resistance for outstanding durability. With disassembly-free, bullet-styled antennas attached, the well-thought-out design form factor optimizes operational functionality for fast configurations.

Smart Channel Scan and Selection

Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. Smart channel scan helps determine which ones are occupied and selectable.

Color LCD with an Exclusive Rocker-Style Button

The Mars 4K features a color LCD with a user-friendly UI design that enables quick configurations and status checks. Its uniquely designed gamepad-styled button greatly improves the operational setup experience.

Multiple Power Supply Options

The Mars 4K supports a wide range of DC power options—6V to 16V, NP-F batteries, and USB Type-C chargers.

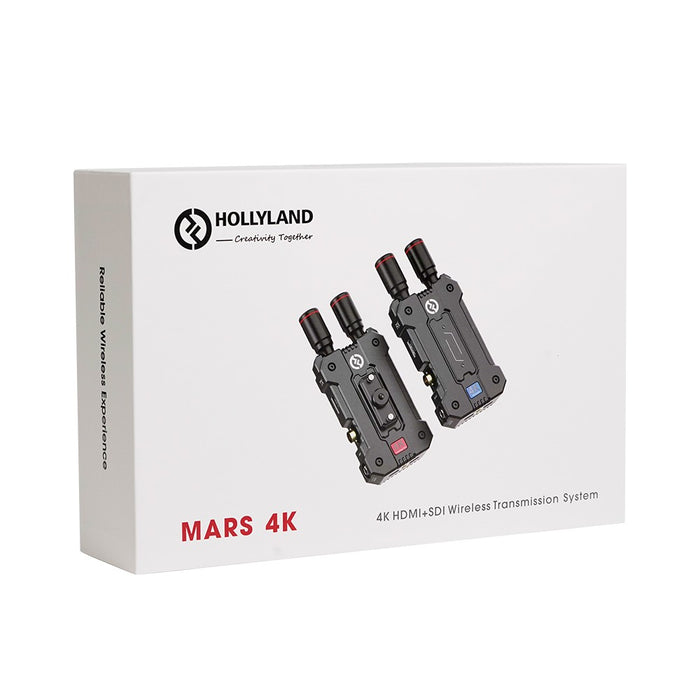

contents

1x Transmitter
1x Receiver
5x Antenna
1x Cold Shoe
1x Type-C OTG Converter
1x Self-llocking DC Adapter
1x User Guide
1x Warranty Card
1x Expansion Accessory

manufacturer

Hollyland
