Gefen HD & VGA to 3GSDI Scaler / Converter

Name: Gefen HD & VGA to 3GSDI Scaler / Converter
Brand: Gefen
SKU: VFCGEF108
Price: 1329.0 AUD
Availability: InStock

SKU VFCGEF108

$1,016.74 - $1,016.74

$1,016.74

$1,329.00

$1,329.00 - $1,329.00

$1,329.00

14 Dec. Estimated arrival

11 Dec. Order placed

12-13 Dec. Order dispatches

14 Dec. Delivered!

Switch video and audio from an HDMI and a VGA source, scale the picture, and output it to an SDI device

View more product information

features

Converts and scales HDMI and VGA and L/R analog audio to SDI
Input resolutions up to 1920 x 1200 (WUXGA) and 1080p60
Output resolutions up to 1080p60
On-screen display (OSD) menu allows easy set-up and control
Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop
Test Pattern Generator for quick system configuration
Embeds 2-channel analog stereo audio in SDI signal (VGA Input only)
Up to LPCM 7.1 audio support (HDMI input only)
Gefen Syner-G™ simplifies in-field firmware updates and advanced EDID management including custom input timings
USB port for use with Gefen Syner-G™
Wide power supply operating range (6V to 24V DC)
Locking power supply connector
Surface mountable

specifications

General

Designed for Gefen Syner-GNo
4KNo
KVMNo

Shipping Info

Length1.05 (Inches)
Width7 (Inches)
Height3.9 (Inches)
Weight2.6 (Lbs)
UPC888814180831

Other Specifications

Maximum Pixel Clock - HDMI and VGA Inputs:165 MHz
Maximum Pixel Clock - SDI Output:150 MHz
Maximum TMDS Clock:225 MHz

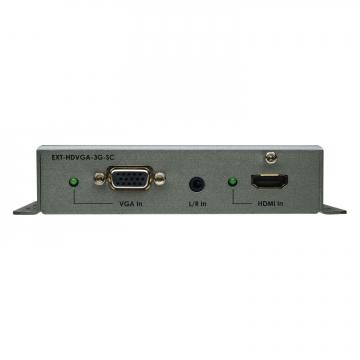

Video Input Connectors:
(1) HDMI Type A 19-pin, female, locking
(1) VGA HD-15, female
Audio Input Connector:(1) 3.5mm mini-stereo jack
Video Output Connector:(1) SDI, BNC-type, female
USB Connector:(1) Mini-B
Input Select/Menu/Navigation Switches:(3) tact-type
HDMI Indicator:(1) LED, green
VGA Indicator:(1) LED, green
Power Indicator:(1) LED, blue
Power Supply Connector:(1) 3-pin, locking
Power Supply:12V DC nominal (6V to 24V DC operating range)
Power Consumption:5W maximum
Operating Temperature:+32 to +122 °F (0 to +50 °C)
Operating Humidity:5% to 90% RH, non-condensing
Storage Temperature:-4 to +185 °F (-20 to +85 °C)
Storage Humidity:0% to 95% RH, non-condensing
MTBF:50000 hours
Dimensions (excluding connectors, W x H x D):5.6" x 1.2" x 3.7" (141mm x 30mm x 93mm)
Net Unit Weight:0.5 lbs. (0.23kg)

description

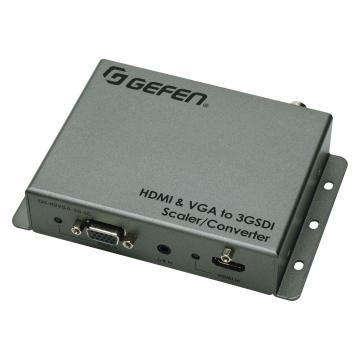

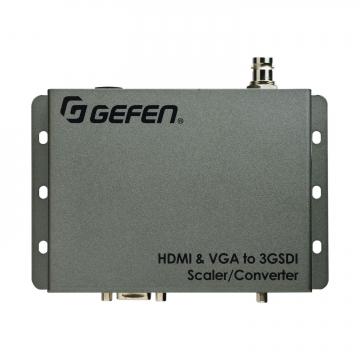

The Gefen EXT-HDVGA-3G-SC scales and converts video from an HDMI or a VGA source to SDI formats, including 3G-SDI and single link HD-SDI. It can also embed HDMI audio or analog L/R audio into the SDI stream. Video can be scaled up to 1080p Full HD. An intuitive and comprehensive on-screen display (OSD) menu allows easy set-up and control. This product can be configured and updated using the Gefen Syner-G™ software suite. The Gefen Syner-G™ is a powerful set of software tools specifically designed to help discover, configure/ customize, manage, monitor, and upgrade Gefen products. Wide power supply operating range of 6V to 24V DC offers installation flexibility for mobile use, in complex studio systems with a common power supply, and with remotely located power sources. A locking power supply connector, small footprint, and a surface-mountable enclosure facilitate easy and secure installation.

contents

HDMI & VGA to 3GSDI Scaler/Converter (EXT-HDVGA-3G-SC) (1)
6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM) (1)
6 ft. VGA Cable (M-M) (CAB-VGA-06MM-O) (1)
6 ft. 3.5mm Mini Stereo Audio Cable (M-M) (CAB-MP-ST-06MM-BC) (1)
12V DC Power Supply (EXT-PS121.5AIP-3P-6) (1)
Quick-Start Guide (QSG-EXT-HDVGA-3G-SC) (1)

manufacturer

Gefen
