Blackmagic Videohub 20 x 20 12G

Name: Blackmagic Videohub 20 x 20 12G
Brand: Blackmagic
SKU: VHUBSMAS12G2020
Price: 3475.0 AUD
Availability: InStock

SKU VHUBSMAS12G2020

Save 12%

$3,935.00

$3,935.00 - $3,935.00

$3,935.00

$3,475.00

$3,475.00 - $3,475.00

$3,475.00

14 Dec. Estimated arrival

11 Dec. Order placed

12-13 Dec. Order dispatches

14 Dec. Delivered!

Larger 20x20 zero latency 12G-SDI video router which supports any combination of SD, HD and Ultra HD on the router at the same time. Features built in control panel with LCD and machined spin knob, SDI re-clocking and external software control..

View more product information

features

Eliminates complex cable mess
Advanced 12G-SDI for SD, HD and Ultra HD routing
Supports and connects multiple video standards simultaneously
Elegant front panel with spin knob, direct entry buttons and LCD screen
Change router crosspoints visually on the built-in LCD screen
Full SDI re‑clocking
Up to 32 channels of embedded audio
Deeper bit depth and color precision
Remote router control via external hardware control panels (sold separately) or free Videohub Software control on Mac, Windows, and iPad
Customizable router control with the Developer SDK

specifications

Connections
SDI Video Inputs	20
SDI Video Outputs	20
SDI Rates	DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G
Video Input Re-Sync	None
SDI Reclocking	On all SDI outputs
Reference Inputs	Tri-Sync or Black Burst
Reference Outputs	Reference terminating loop output
Ethernet	Supports 10/100/1000 BASE T
Computer Interface	USB-C

Standards
SD Video Standards	525i5994 NTSC, 625i50 PAL
HD Video Standards	720p50, 720p5994, 720p60 1080i50, 1080i5994, 1080i60 1080p2398, 1080p24, 1080p25, 1080p2997, 1080p30, 1080p4795, 1080p48, 1080p50, 1080p5994, 1080p60 1080PsF2398, 1080PsF24, 1080PsF25, 1080PsF2997, 1080PsF30
2K Video Standards	2Kp2398 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp2997 DCI, 2Kp30 DCI, 2Kp4795 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp5994 DCI, 2Kp60 DCI 2KPsF2398 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF2997 DCI, 2KPsF30 DCI
Ultra HD Video Standards	2160p2398, 2160p24, 2160p25, 2160p2997, 2160p30, 2160p4795, 2160p48, 2160p50, 2160p5994, 2160p60
4K Video Standards	4Kp2398 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp2997 DCI, 4Kp30 DCI, 4Kp4795 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp5994 DCI, 4Kp60 DCI
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
SDI Audio Sampling	Television standard sample rate of 48kHz and 24-bit
SDI Video Sampling	YUV 4:2:2 and RGB 4:4:4
SDI Colour Precision	10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI 10-bit YUV 4:2:2 in all modes
SDI Colour Space	REC 601, REC 709, REC 2020
SDI Auto Switching	Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard
SDI Metadata Support	Video payload identification ancillary data as per SMPTE 352M

Control
Built-in Control Panel	24 buttons for local control of Videohub and 3 buttons and search dial for menu control. 2.2 inch colour display.
External Control Panel	Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control Panel Connection	Ethernet

Software
Software Control	Router control included free for Windows™ and Mac™
Internal Software Upgrade	Via included updater application

Operating Systems
Mac OS Versions	Mac 12.0 Monterey, Mac 13.0 Ventura or later
Windows Versions	Windows 10, 64-bit Windows 11

Display
Displays	Built-in 2.2 inch LCD for video and menu settings.

Power Requirements
Power Supply	1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required.
Power Fail Protection	Crosspoint connections preserved and restored instantly at power on.
Power Usage	27.5 W max.

Physical Specifications
Dimensions	48.2cm W x 23.6cm D x 4.4cm H
Weight	3.6kg
Installation	1 rack unit height

Environmental Specifications
Operating Temperature	0° to 40° C (32° to 104° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Relative Humidity	0% to 90% non-condensing

description

The Blackmagic Videohub 12G-SDI video routers let you connect all your equipment without creating a complex cable mess!

Blackmagic Videohub routers support 12G-SDI so they allow you to connect and route any combination of SD, HD and Ultra HD on the same router at the same time. Plus they have zero latency so are perfect for live production and broadcast!

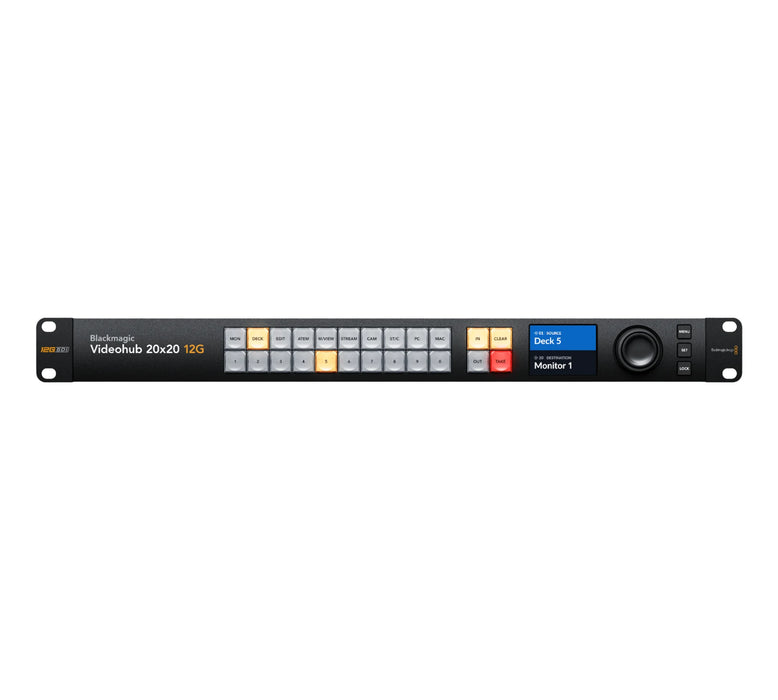

The design features an elegant front panel with LCD for labels and even live video, shortcut buttons and a machined metal spin knob with soft rubber coating that lets you browse video sources. Ethernet is also included so you can remotely control the router using a range of external hardware or software control panels.

contents

Blackmagic Videohub 20x20 12G
Welcome wallet with QR code for software
3 Year Limited Manufacturer's Warranty, and 12 Month Warranty on the front panel.

manufacturer

Blackmagic
