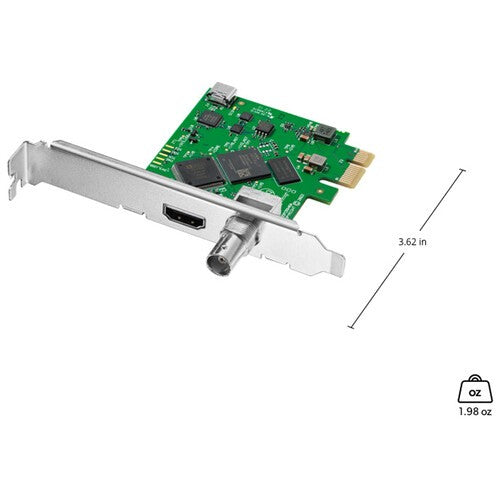

Blackmagic DeckLink Mini Recorder HD

SKU VIOBMD210
Save 5% Save 5%
Original price $215.00
Original price $215.00 - Original price $215.00
Original price $215.00
Current price $205.00
$205.00 - $205.00
Current price $205.00
14 Dec. Estimated arrival
11 Dec. Order placed
12-13 Dec. Order dispatches
14 Dec. Delivered!

  • Broadcast-Quality Recording
  • 1-Lane PCIe Slot Card (for 1-16 Lanes)
  • SDI and HDMI Inputs
  • Supports up to 2K DCI over SDI
  • Up to 1080p60 Resolution Support in HDMI
  • 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
  • REC 601/709 Color Space Support
  • Mac, Windows, and Linux Compatible
,

Get broadcast quality HDMI and SDI video capture for your PCIe computer! DeckLink Mini Recorder HD features 3G-SDI and HDMI 2.0 for recording SD and HD formats up to 1080p60 and 2Kp60 DCI! You get a broadcast quality capture card that’s compatible with virtually all SD and HD equipment and popular video software such as DaVinci Resolve and more!

Need help? Ask our experts for a quote or advice
features

Supported Software Applications

  • Wirecast
  • vMix
  • OBS
  • Cinergy Capture Pro
  • DevTek EasyMediaSuite
  • Glookast Capturer
  • Livestream Producer
  • Metus Ingest
  • Softron MovieRecorder
  • ToolsOnAir just:in
  • Burst Video WebClip2Go & [REC]Marker
  • Zoom

Supported Codecs

  • AVC-Intra
  • AVCHD
  • Canon XF MPEG2
  • Digital SLR
  • DV-NTSC
  • DV-PAL
  • DVCPRO50
  • DVCPROHD
  • DPX
  • HDV
  • HEVC
  • XDCAM EX
  • XDCAM HD
  • XDCAMHD422
  • DNxHR & DNxHD
  • AppleProRes 4444
  • Apple ProRes 422 HQ
  • Apple ProRes 422
  • Apple ProRes 422LT
  • Apple ProRes 422 Proxy
  • Uncompressed 8-bit 4:2:2
  • Uncompressed 10-bit 4:2:2
  • Uncompressed 10-bit 4:4:4

Hardware Frame Buffer

v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), R12B, R12L (12-bit RGB)

specifications

Blackmagic Design Mini Recorder HD Specs

Host Connection PCIe (Length Unspecified)

Input

Video Input Connectors 1 x BNC (3G-SDI / HD-SDI / SD-SDI)
1 x HDMI (HDMI 2.0)
Input Video Format SDI (8/10/12-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
SDI (8/10-Bit 4:2:2 YUV)
DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2KPsF at 23.98/24/25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (8-Bit 4:4:4 RGB, YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (12-Bit 4:4:4 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Simultaneous Multi-Input Support Not Specified by Manufacturer
Audio Input Connectors None
Embedded Audio Input SDI: 16-Channel
HDMI: 8-Channel

Output

Embedded Audio Output None

Standards

Video Standard Compliance SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1
HDR Compatibility Not Specified by Manufacturer

Hardware

OS Compatibility macOS 11.1
macOS 12.0 or Later
Windows 10
Windows 11
Linux
Power Consumption Device: 3 W

Environmental

Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90% (Non-Condensing)
Storage Humidity 0 to 90% (Non-Condensing)

General

Dimensions 3.62" / 91.95 mm
Weight 1.98 oz / 56 g

description

Record HD video over SDI or HDMI with the Blackmagic Design DeckLink Mini Recorder HD. This 1-lane PCIe slot playback card with SDI and HDMI inputs is, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, allowing you to capture up to DCI 2K video over SDI, and HD video over HDMI 2.0.

The card is compatible with such software packages as Wirecast, vMix, and OBS. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.

Note:
For use on a Mac, a Mac Pro is required with PCI Express slots.

PCIe Compatibility

PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)

contents

  • Blackmagic Design DeckLink Mini Recorder HD
  • Low-Profile Slot Bracket
  • Warranty

manufacturer

Blackmagic
