AJA FS-Mini SD, HD and 3G Video Frame Sync and Up/Down/Cross Converter

Name: AJA FS-Mini SD, HD and 3G Video Frame Sync and Up/Down/Cross Converter
Brand: AJA
SKU: VFCAJA219
Price: 1627.0 AUD
Availability: OutOfStock

SKU VFCAJA219

Sold out

$1,715.00

$1,715.00 - $1,715.00

$1,715.00

$1,627.00

$1,627.00 - $1,627.00

$1,627.00

14 Dec. Estimated arrival

11 Dec. Order placed

12-13 Dec. Order dispatches

14 Dec. Delivered!

The FS-Mini is a broadcast quality utility frame sync that packs the production-proven reliability of AJA’s leading FS frame sync technology into a portable Mini-Converter supporting frame synchronization of untimed 3G-SDI, HD, and SD video signals at an affordable price.

View more product information

features

Utility frame sync function, times input signals to an external reference
Supports bi-level and tri-level references
High quality 10-bit video processing
Low latency processing, nominal video delay of 1 frame
Freeze (on input signal loss) to black or last good frame
Synchronizes 3G, HD and SD video formats
Simultaneous SDI and HDMI outputs
16-channel embedded SDI audio I/O
8-channel HDMI output audio
2-channel RCA-style analog outputs at -10dBV (nominal)
Utility frame rate conversion, supports 3:2 pulldown
Up, down, cross conversion between 3G, HD and SD video formats
AFD input detection, down-convert control
Simple configuration via a DIP switch or USB port and Mini-Config software
Universal input +5V power supply AJA model DWP-U-R1 (included)
Five year warranty

NOTE: FS-Mini converts 3G-SDI Level A formats only. It does not input or output 3G-SDI Level B.

specifications

Video Formats

(2K) 2048 x 1080P
(2K) 2048 x 1080PsF
(HD) 1920 x 1080p
(HD) 1920 x 1080Psf
(HD) 1920 x 1080i
(HD) 1280 x 720p
(SD) 625i
(SD) 525i
YCbCr, 4:2:2, 10-bit

Video Input Digital

1x 3G-SDI input, 1x BNC
3G/HD/SD, SMPTE-259/292/424
- Single Link 3G-SDI Level A, SMPTE-425-1
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94

Video Output Digital

1x 3G-SDI outputs, 1x BNC
3G/HD/SD, SMPTE-259/292/424
- Single Link 3G-SDI Level A, SMPTE-425-1
(HD) 1080p 23.98 (for 23.98 video inputs)
(HD) 1080p 24 (for 24 video inputs)
(HD) 1080p 25 (for 50 video inputs)
(HD) 1080p 29.97 (for 59.94 video inputs)
(HD) 1080p 30 (for 60 video inputs)
(HD) 1080p 50 (for 50 video inputs)
(HD) 1080p 59.94 (for 23.98, 59.94 video inputs)
(HD) 1080p 60 (for 24, 30 or 60 video inputs)
(HD) 1080PsF 23.98 (for 23.98 video inputs)
(HD) 1080PsF 24 (for 24 video inputs)
(HD) 1080PsF 25 (for 50 video inputs)
(HD) 1080PsF 29.97 (for 59.94 video inputs)
(HD) 1080Psf 30 (for 30 or 60 video inputs)
(HD) 1080i 59.94 (for 23.98, or 59.94 video inputs)
(HD) 1080i 60 (for 24, 30, or 60 video inputs)
(HD) 1080i 50 (for 25 or 50 video inputs)
(HD) 720p 50 (for 50 video inputs)
(HD) 720p 59.94 (for 23.98, 59.94 video inputs)
(HD) 720p 60 (for 24, 30, or 60 video inputs)
(SD) 625i 50 (for 25 or 50 fps video inputs)
(SD) 525i 59.94 (for 23.98 or 59.94 video inputs)

Monitor Output Digital

1x HDMI standard type A connector
- HD/SD
- Color space, YCbCr or RGB
- Bit depth, 8 or 10
- RGB Range, SMPTE or Full Range

Video Processing

Frame rate conversion/film cadence removal/insertion (3:2)
Freeze (on input signal loss) to black or last good frame
AFD input detection, down-convert control
Nominal video delay HD/SD, 1 frame

Up-Conversion

Hardware 10-bit
4x3 Pillar: results in a 4x3 image at center screen with black sidebars
14x9 Pillar: results in a 4x3 image zoomed slightly to fill a 14x9 image with black side bars
Full Screen: results in a 4x3 image stretched horizontally to fill in a 16x9 screen
Letterbox to Full: results in image zoomed to fill fullscreen
Wide Zoom: results in a combination of zoom and horizontal stretch to fill a 16x9 screen; this setting will introduce a small aspect ratio change

Down-Conversion

Hardware 10-bit
Crop: image is cropped to fit new screen size
Anamorphic: HD image is converted to full-screen SD with a 16x9 aspect ratio
14x9: image is reduced slightly with aspect ratio preserved, black is added top and bottom, and the left and right sides are cropped
Auto AFD: automatically selects the best down-convert mode based on the input video's Active Format Description (AFD) code
Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved

Cross-Conversion

Hardware 10-bit
1080i to 720p
720p to 1080i
720p to 1080PsF

Aspect Ratio Conversion for
SD to SD

Letterbox: transforms SD anamorphic material to a letterboxed image
H Crop: produces a horizontally stretched effect on the image; transforms anamorphic SD to full frame
SD Pillarbox: produces an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
V Crop: transforms SD letterbox material to an anamorphic image
14x9: anamorphic to 14x9 conversion

Audio Input Digital

48 kHz sample rate
1x SDI embedded input
- 16-channels, 24-bit (20-bit SD), SMPTE-272/29

Audio Output Digital

48 kHz sample rate
1x SDI embedded output
- 16-channels, 24-bit (20-bit SD), SMPTE-272/299

Audio I/O

16-channel embedded SDI audio input
16-channel embedded SDI audio output
2 or 8-channel HDMI audio output
2x RCA style analog outputs at -10 dBu (nominal)

Reference Input

External, 1x BNC
Blackburst or tri-level sync
75-ohms terminating

Genlock

Lock to External Reference
Lock to SDI input
Free run

HDCP

The FS-Mini does not encode the HDMI output with HDCP encryption. By definition, HD-SDI inputs to the FS-Mini are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.

User Interface

USB port used with supplied cable and Mini-Config software application to configure device via PC or Mac
External DIP switches

Size (w x d x h)

5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)

Weight

0.7 lb (0.3 kg)

Power

+5VDC Regulated, 9 Watts, Power Supply Required (included with purchase)

Environment

Safe Operating Temperature Range: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

description

The FS-Mini is a broadcast quality utility frame sync that packs the production-proven reliability of AJA’s leading FS frame sync technology into a portable Mini-Converter supporting frame synchronization of untimed 3G-SDI, HD, and SD video signals at an affordable price.

FS-Mini allows users to synchronize and convert a wide range of video formats to their house standard with a 3G-SDI input and output, HDMI output, and a 2-channel RCA style audio output. The FS-Mini also provides high quality up, down, cross-conversion.

The device also features a reference input that can be used to lock to a local reference. It can be simply controlled via local DIP switches or USB with AJA's Mini-Config application.

Simplified Block Diagram

FS-Mini is designed to meet demands of broadcast engineering and live event production while providing incredible flexibility. It receives an untimed signal, frame syncs it, processes it and automatically routes it to both the SDI output for use in production and the HDMI output for monitoring. The user selects which 2-channels of audio are routed to the RCA-style audio monitor outputs.

USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

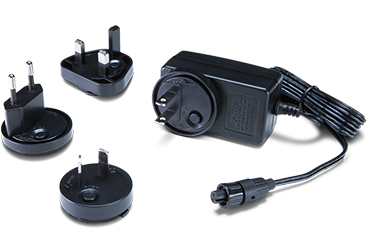

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.

Industry-Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, support@aja.com will work with you to get up and running.

Mini-Converter products are covered by a generous five year international warranty.
